An electric floor thermostat gives you precise control over your floor heating and can help reduce energy use when set up correctly. Many homeowners assume that installing one requires a licensed electrician from start to finish, but if you’re simply replacing an existing thermostat, you can safely handle much of the work yourself. Here’s a step-by-step guide to installing your own electric floor thermostat safely and correctly.

Before You Begin – Safety First

Before starting, it’s essential to understand the safety rules and local electrical codes. In most U.S. states, homeowners are allowed to replace an existing thermostat as long as the wiring and circuit are already in place and you’re not altering the permanent electrical installation. However, if you need to run new wiring or connect directly to the main electrical panel, the work must be done by a licensed electrician.

Always remember:

• Turn off power to the circuit at the breaker panel before you begin.

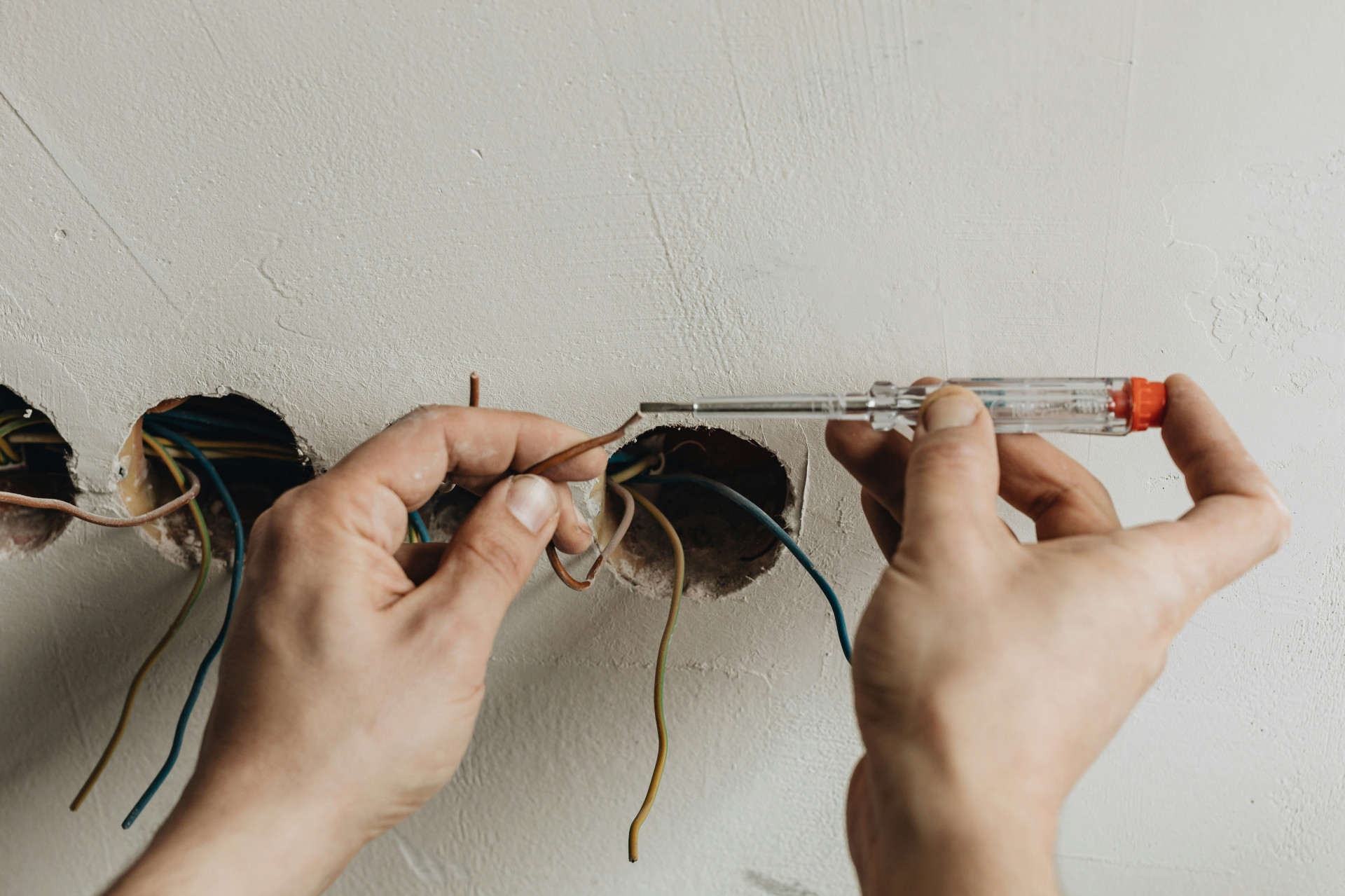

• Use a non-contact voltage tester to confirm that no wires are live.
• Read the manufacturer’s installation manual carefully—details can vary between models.

Step 1: Remove the Old Thermostat

Start by removing the faceplate of your old thermostat. Most models can be gently pried off with a small screwdriver. Unscrew the thermostat from the wall box and pull it forward to expose the wiring behind it.

Take a clear photo of the wiring connections before disconnecting anything—this will make it easier to connect the new thermostat correctly. Then, disconnect the wires one at a time.

Step 2: Prepare the Wires

Once the old thermostat is removed, inspect the wires to ensure they’re in good condition. If the copper ends are dark or damaged, trim and strip them back slightly to expose clean wire. You’ll typically see three types of wires:

• Line (Hot) – usually black.
• Neutral – usually white.
• Floor sensor wires – two thin wires from the floor temperature sensor.

If you’re unsure which wire is which, stop and consult an electrician before proceeding.

Step 3: Connect the New Thermostat

On the back of your new thermostat, you’ll find terminals labeled with symbols such as L (Line), N (Neutral), and often a sensor symbol for the floor probe. Connect the wires as follows:

1. Line (Hot) wire to the L terminal.
2. Neutral wire to the N terminal.
3. Floor sensor wires to the two sensor terminals.

Tighten the terminal screws securely, but avoid over-tightening, which can damage the wire. Make sure no bare copper is exposed that could cause a short circuit.

Step 4: Mount the Thermostat on the Wall

After connecting the wires, gently push the thermostat back into the wall box. Ensure it sits straight and secure it with the mounting screws. Snap or screw the faceplate or cover back on according to the manufacturer’s instructions.

If your model includes a touchscreen or digital display, you may need to attach a frame or trim piece before installing the front cover.

Step 5: Restore Power and Test

Once everything is assembled, turn the power back on at the breaker panel. Turn on the thermostat and check that the display lights up and allows you to adjust the temperature. After a few minutes, you should feel the floor begin to warm.

If the thermostat doesn’t respond, turn the power off again and double-check your connections. Make sure the floor sensor is properly connected—without it, the thermostat can’t regulate the heat.

Step 6: Set Temperature and Schedule

Most modern thermostats let you set both comfort and energy-saving temperatures, as well as daily or weekly schedules. This allows you to automatically lower the temperature at night or while you’re away—an easy way to save energy.

A good general guideline is:

• Comfort temperature: around 75–80°F at the floor surface.
• Energy-saving temperature: around 65–68°F.

Refer to your thermostat’s manual for programming instructions. Many newer models can also be controlled via smartphone apps, so you can adjust the heat even when you’re not home.

Step 7: Maintenance and Troubleshooting

An electric floor thermostat requires very little maintenance, but if you notice uneven heating or temperature fluctuations, check that the floor sensor is working properly. If the floor feels too hot or doesn’t heat at all, the issue may be a faulty sensor or incorrect settings.

Also, make sure the thermostat isn’t covered by furniture or rugs, as this can affect temperature readings and performance.

A Small Project with Big Comfort

Installing an electric floor thermostat is a manageable DIY project for most homeowners—especially when replacing an existing unit. The result is more precise temperature control, lower energy bills, and a more comfortable home.

With a bit of patience and attention to safety, you can enjoy warm, inviting floors and the satisfaction of a job well done.
